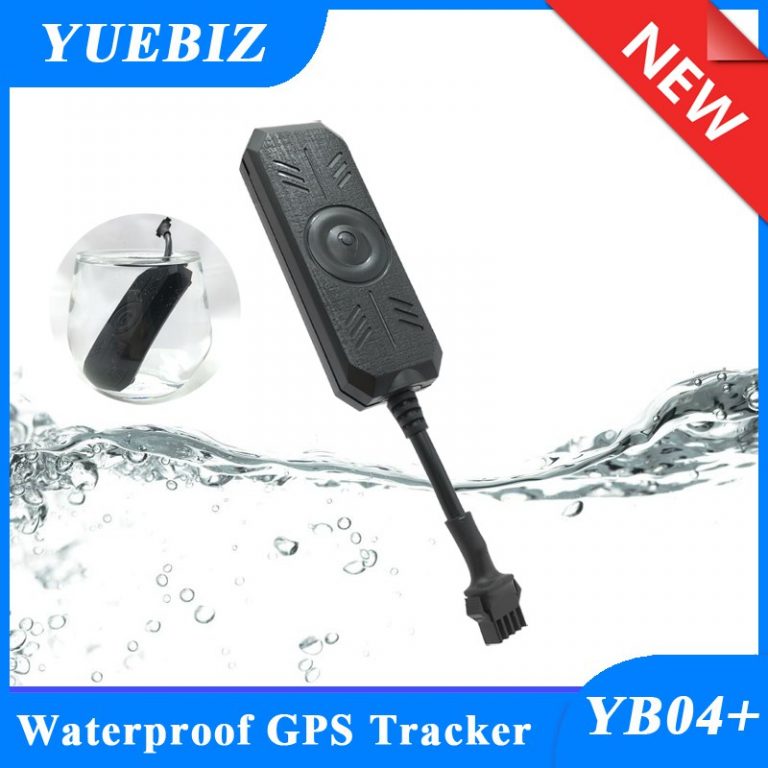

Smallest waterproof vehicle GPS Tracker in the world, no monthly fee
Model: YB04
Size: 78(L)mm*29(W)mm*12(H)mm
Weight: 33g
Introduction: The smallest waterproof GPS tracker is going to use for motorbikes, saloons, hatchbacks, station wagons, buses, vans, trucks etc.
Product Functions:
*BDS&GPS&GSM positioning
*Waterproof of Grade: IP65
*Ultra-wide working voltage
*Ultra-low power consumption
*Accurate real time tracking
*Historical route tracking
*Eletronic Geo-fence
*Offline alarm
*Over speed alarm
*Vibration alarm
*Engine tele-cutoff (petrol/electric)
*Check location via SMS and phone
| Performance and Parameters | |
| Dimension | 78(L)×29(W)×12(H)mm |
| Weight | 33g |
| Backup Battery | 100Mah |
| Input Voltage | 9-90V |
| Standby Time | 1-2 hours |
| GSM Frequencies | 2G network 850/900/1800/1900MHz |
| GSM/GPS Antenna | MT6261/HD8020 |
| GPS Accurancy | 5m(2D RM) |
| Operation Temperature | -20–+70°C |
| Humidity | 20%—80%RH |
| GPRS | Class 12,TCP/IP |
| GPS Channel | 20 |
| GPS Sensitivity | -159dBm |
| Acquisition Sensitivity | -144dBm |
| Position Accuracy | 5~10m |
| TTFF (Open Sky) | Cold Start: <38s |
| Warm Start:<32s | |
| Hot Start:<2s | |
| Standby Average Current | ~0.8mA(12V DC) |
| ~0.4mA(24V DC) | |
| GSM/GPS Antenna | Built-in design |
| Data Transmit | TCP, SMS |
Waterproof Vehicle GPS Tracker
Welcome to choose our new product:
Smallest waterproof vehicle GPS Tracker
YB04 Pro Main Functions:
1,Real-time GPS&BDS positioning
2,Waterproof IP65
3,Anti-theft Cut-off Engine
4,ACC/Ignition Detection
5,Super Mini Easy Hidden
6,Multiple Security Alarm&Reports
7,External Power Disconnect Low Power Alarm, Geo-fence Alarm, Over Speed Alarm
8,Remotely APP/Web Locating&Tracking
YB04 Pro Vehicle GPS Tracker:
Real-time GPS&BDS positioning
Anti-theft Cut-off Engine
ACC/lgnition Detection
Super Mini Easy Hidden
Multiple Security Alarm&Reports
External Power Disconnect Low Power Alarm,Geo-fence Alarm,Over Speed Alarm
Remotely App/Web Locating&Tracking
9-90V Wide Application
Waterproof Tracker
Smallest gps tracker
Waterproof vehicle GPS Tracker
Mini Waterproof Tracker PRODUCT FUNCTION:
01,Power Cut-Off Alarm
When someone dismantling the tracker illeaglly,the tracker will send message to your phone,protect your car all day long.
02,Remote Power Cut-Off
When the car encountering the theft or illegal operation,you can send the command through the APP to cut off car’s power remotely.
(Work with the suitable relay to cut-off power remotely)mini tracker
03,Real-Time Positioning
GPS+Beidou+LBS multiple positioning mode,allows you get the real-time location of your car anytime and anywhere.
04,Vibration Alarm
The YB04 with a high sensitivity sensor bulit-in,it will send alarm message to your phone when the vehicle move or vibrate,keep your peace of mind.
05,Historical Route
APP will store vehicle’s driving route for 180 days,let user check the route playback convenient…
06,Overspeed Alarm
The mobile phone will receive the APP’s overspeed notifications when vehicle exceed the preset value.
Wiring Diagram&Installation Position:
1,Relay white wire connects battery positive pole.
2,Relay yellow wire conects tracker yellow wire.
3,Relay 2 green wires connect oli tank wires.
USE:Car tracker,Motorbike tracker,Electric motorbike tracker,Fleet tracker
Phone Tracking:
Please download our phone APP(YI Tracker) for IOS/Android system according to the instruction handbook after you bought trackers.
Tracking Car’s Trails By Phone:
Tracking Car’s Trails isn’t a dream.
We developed the APP for using smart phone to track the car. All you need to do is download and install the APP to your phone, and then you can track your car immediately.
Replaying Car’s Historical Route:
The historical moving route of the latest 3 months of the tracker can be replayed on our Android/IOS tracking APP(YI Tracker) or Webpage(https://www.yuegps.com) tracking platform.
Personal Vehicle:
Nowadays,thieves are active thus we are nervous everyday.
Except that,friends borrows our cars etc.will also make us upset…
BUT! A vehicle GPS tracker can solve the problems!
Waterproof GPS Tracker
Also,by using the vehicle GPS tracker,we can see where they are and which direction they are going to so that we can ensure their safeties.
Vehicle Rental Company:
Car lending and tickets receiving…
Car’s recommemded installation position:
Front guard vicinity
Console inside under the front wind shield
Seats vicinity
Plastic board inside under the rear windshield
Car doors inside
Rear guard vicinity
