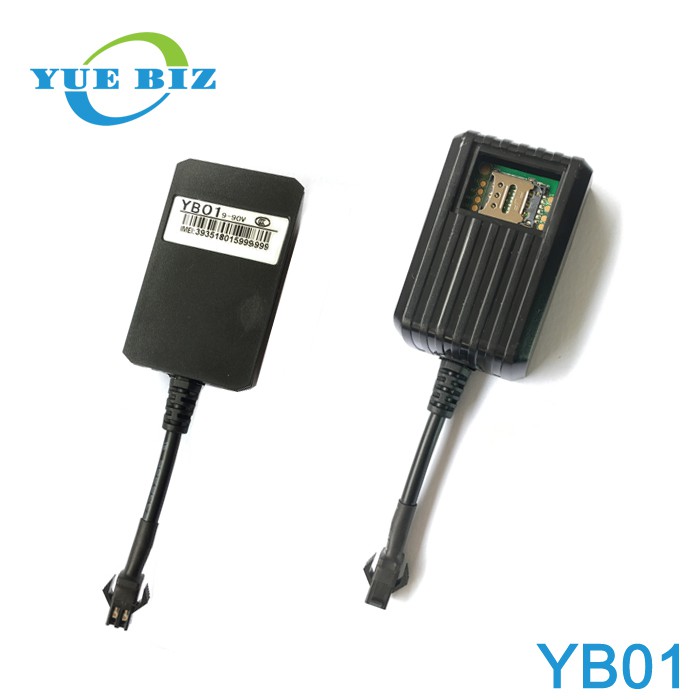

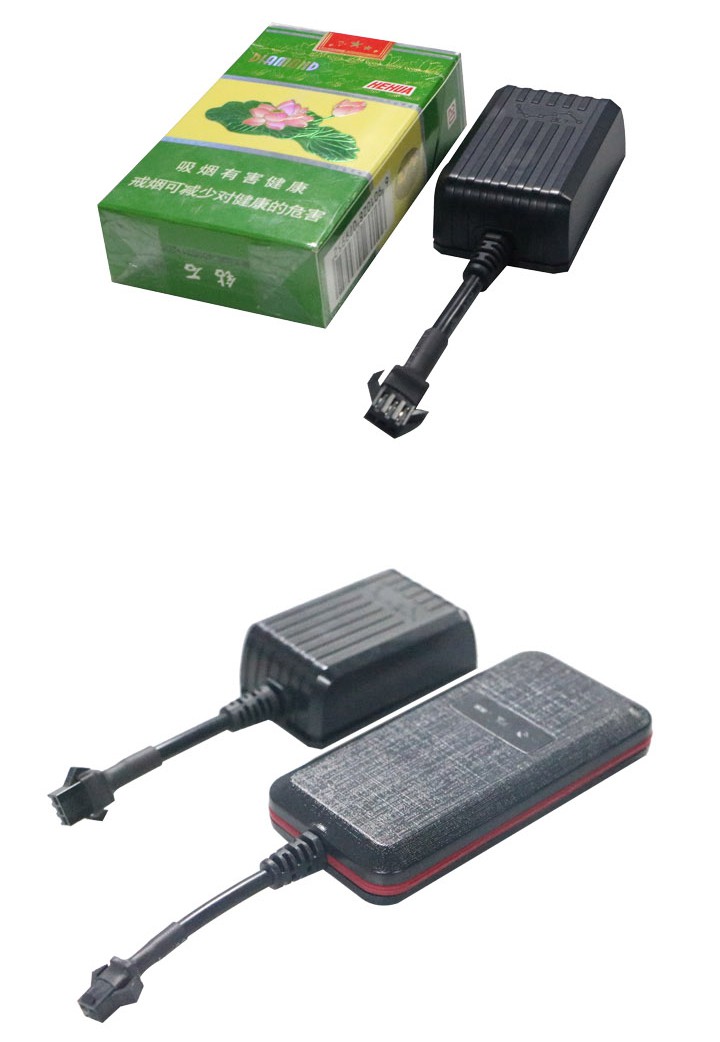

Mini spy vehicle gps tracker for car truck bus motorcycle electric bike with wide working voltage:9-90V- YB01

Product name : Mini spy vehicle gps tracker for car truck bus motorcycle electric bike with wide working voltage:9-90V
Category :  Vehicle GPS Tracker
Product No. : YB01
Online Inquiry         Email Us
Quick Details
Type:
Gps Tracker
Use:
Automotive
Screen Size:
spy gps tracker
Function:
small gps tracker
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
YUEBIZ
Model Number:
YB01
Warranty:
12 Months
Size:
54.8(L)*33.6(W)*18(H)mm
Positioning mode:
GSM 850/900/1800/1900MHz
GPRS:
Class12,TCP/IP
Host weight:
105G
Velocity Accuracy:
0.1m/s
Voltage:
9-90V

Working temperature:
-20℃~+70℃
Feature:
Online power tips/Free install/wireless
Characteristic:
Super power-saving technology












Packaging & Delivery
Packaging Details
Outside uses the paper box,inside uses the PP bag,Each piece with color box packaging
Delivery Time
Within 3 days for the sample, 7-15 days for mass production
gsm tracking device
spy gps tracker
small gps tracker
vehicle tracking solutions
device tracker
gps tracker for my car
truck tracks
gps tracking service
vehicle tracking services
gps device for car
mobile car tracker
garmin car gps
car tracking service

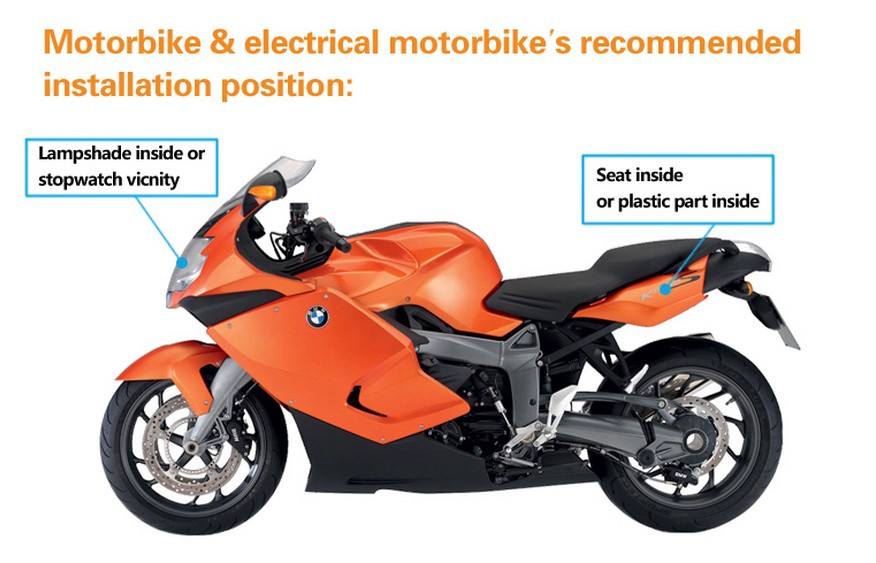

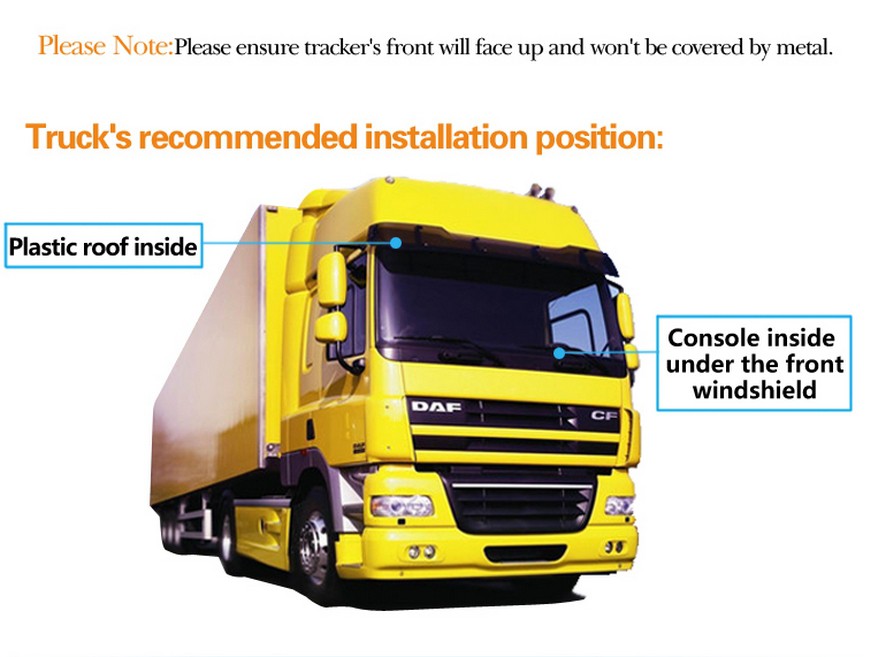

YB01 Installation:

1. Please read the instructions in detail

2. Product check, check whether the terminal type is correct, complete accessories?

3. Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

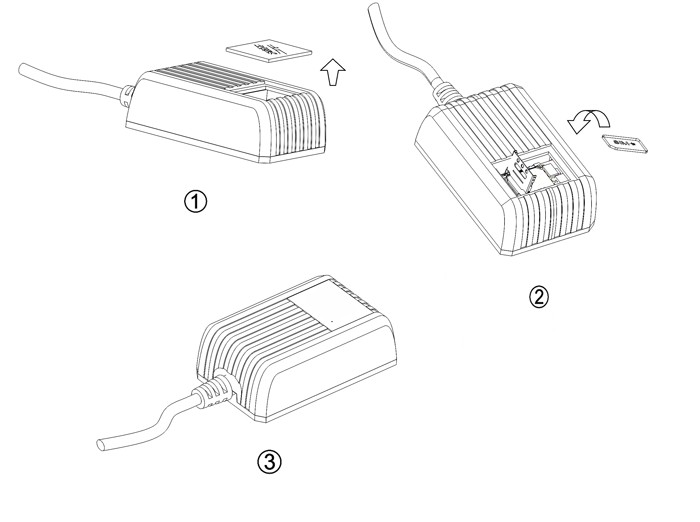

4. SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder (as follows).

tracker car

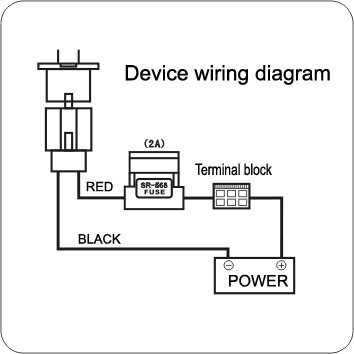

YB01  Device connecting requirements:

1. The device power supply is DC 9-90V. The red line is positive pole while the black line is negative pole.

2. The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.

3. When finishing the power supply wire connection, please make the plug of power supply to the device.

car location tracker
Product Description

Double mode positioning of GPS

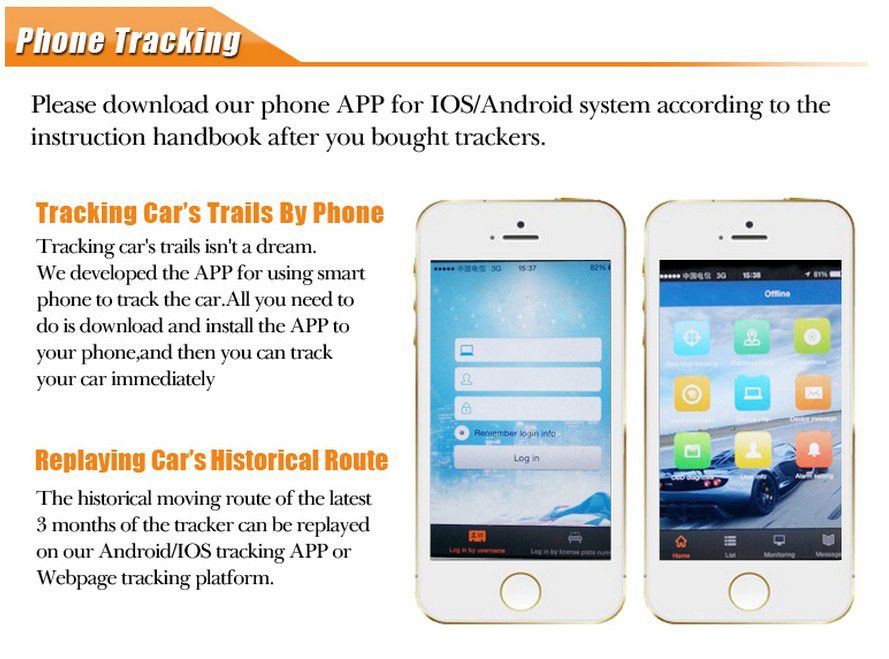

Real time management of mobile APP

 ☆Electronic fence

 ☆Track replay

 ☆Fully sealed waterproof

 ☆Ultra wide electric frequency

 ☆Ultra low power consumption



The main functions of YB01:

1.Real Time tracking by Android&IOS APP,and PC also.

2.Do the Master setting

3.Waterproof IP65

4.Over-speed alarm

5.Vibration alarm

6.Geo-fence alarm

7.Working Voltage:9-90V

YB01 Technical parameters:

1 .GSM850/900/1800/1900MHz

2 .GPRSClass12,TCP/IP

3 .Working Voltage9~90V

4 .Working Current≈22mA (12vDC)

5 .Working Current≈12mA (24vDC)

6 .GPS Fixed TimeCold start≈38sOpen sky

Warm start28s

Hot start≈2s

7 .GPS Precision10m2D RM

8 .Working Temperature-20℃+70℃

9 .Working Humidity20%80%RH

10.Measurement54.8 L×33.6 W×18 H  mm


Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

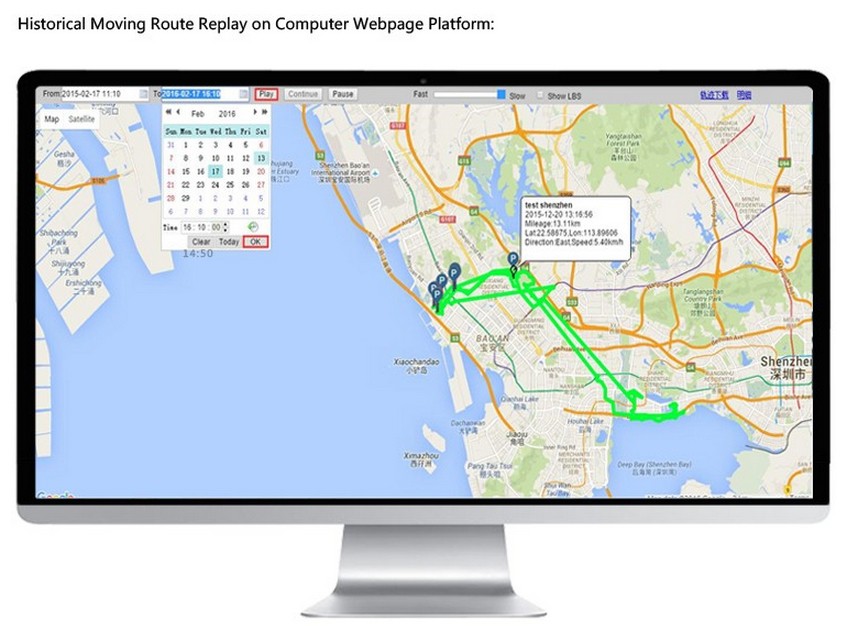

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

         Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.


        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
