Vehicle GPS Tracker Supplier

fleet management system- YB02

Product name : fleet management system
Category :  Vehicle GPS Tracker
Product No. : YB02
Online Inquiry         Email Us

Quick Details

  • Type: car tracker no monthly fee
  • Model: YB02
  • Weight: 50 grams
  • GSM frequency: Global commonly used 4 frequencies
  • GPS accuracy: 10 meters, 2D RMS
  • Network bands: 850/900/1800/1900 Mhz
  • Radiation: very lower than the national standard
  • Network: GSM/GPRS(class 12,TCP/IP)
  • Packing size: 13.3* 9.8*5.5 cm/piece
  • Operating system for phone APP: Android 2.3 & higher, IOS 5.0 & higher
  • Brand: YUEBIZ Technology





Packaging Details 20 pieces/carton(0.31*0.31*0.2 meter)
Delivery Time Within 3-15 days after 100% payment(less than 1,000 USD) made




Car Tracker
Car Tracking
Fleet Management
gps fuel monitoring
car tracking device
gps phone tracker
gps cell phone tracker
mobile gps tracking
hidden gps tracker car
hidden gps tracking device
spy gps tracker
real time tracking device
real tiem fleet tracking
fleet management system
tracker

Product Description

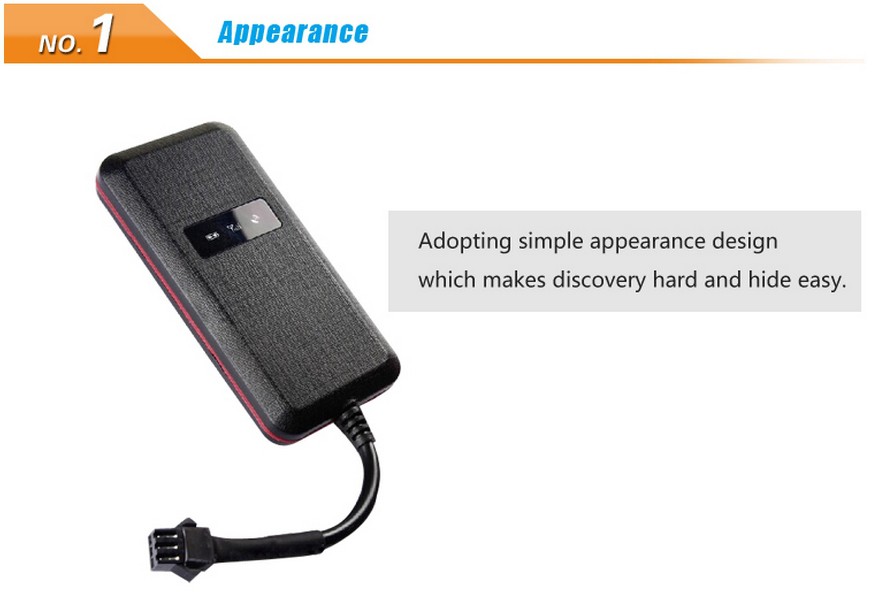

          Vehicle GPS tracker YB02 is one of the independently researched and developed GPS products from YUEBIZ Technology Co., Ltd. which adopted imported high gain GPS module and unique dual mode design, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily hidden and installed GPS tracker in car because of small type and light weight.

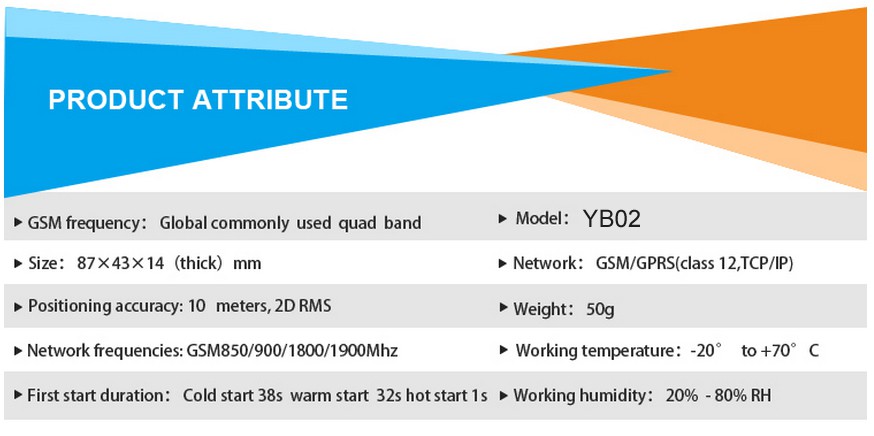

Specifications
Model YB02
Brand YUEBIZ Technology
GSM frequency Global commonly used 4 frequencies
GSM module

Quad band(GSM 850/900/1800/1900 Mhz)

GPS accuracy 10 meters, 2D RMS

Hot start

1 second(all data is valid, start within 2 hours since the last positioning)

Warm start

32 seconds(initialization data loaded, start after 2 hours since the last positioning)

Cold start

38 seconds

(first start, ephemeris cleared and then start, move out about 1,000 km and then start)

Network GSM/GPRS(class 12, TCP/IP)

Radiation

Very lower than the national standard

Weight

50 grams

Working voltage range 9 - 36 V DC
Working temperature -20 to +70 ℃
Working humidity 20 - 80% RH
Working current 22 mA(12 V DC), 12 mA(24 VDC)
Operating system for phone APP Android 2.3 & higher, IOS 5.0 & higher

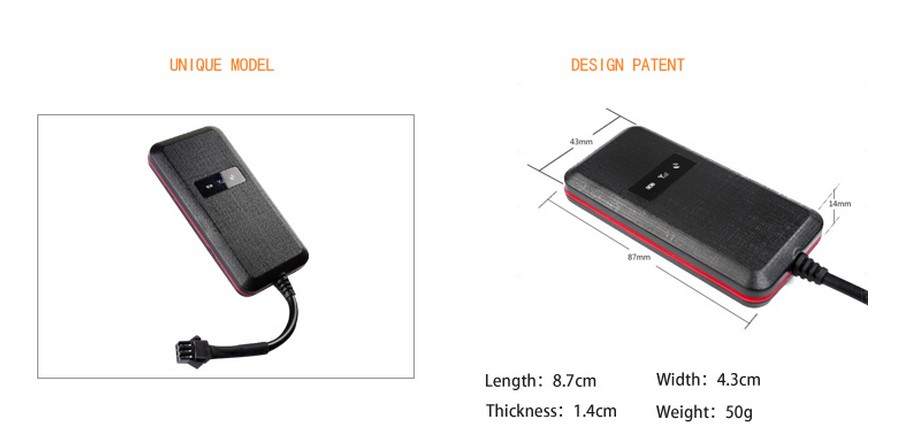

Size

Length: 87 mm

Width: 43 mm

Height: 14 mm

Packing size: 13.3 × 9.8 × 5.5 cm/piece

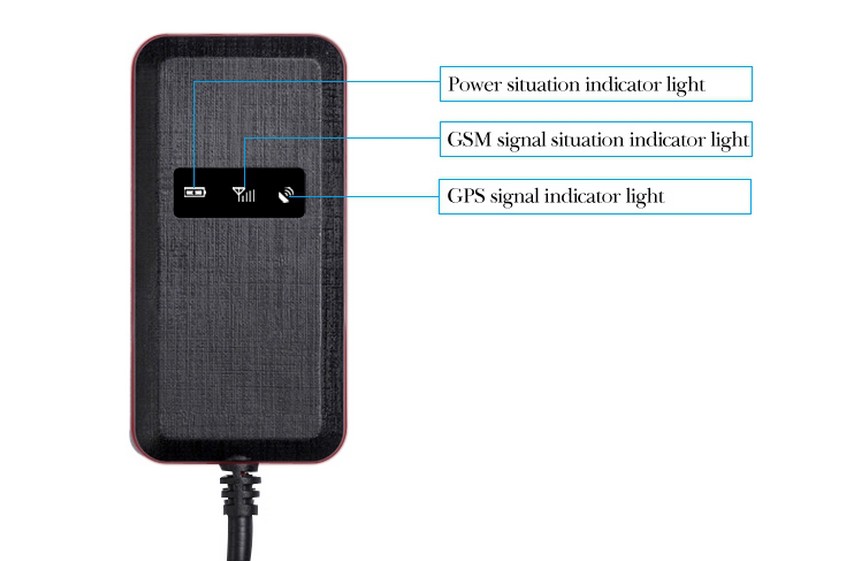

Product Composition

GPS indicator light (Green)

When GPS isn't working, this light will be twinkling.

When GPS works normall, the light will be always lighting.

GSM  indicator light (Blue)

When GSM receives signals normally, this light will be always lighting.

When there are no GSM signals, the light will be twinkling.

Power indicator light (Red)

When the tracker connects the power of DC 9 - 24V, this light will be always lighting until 5 minutes passed. Once the trackers receives calling, it lights again, and will be turned off after 5 minutes.

Power connector To connect the car battery.
GPS antenna GPS accuracy: 10 meters, 2D RMS
SIM card slot 1 unit

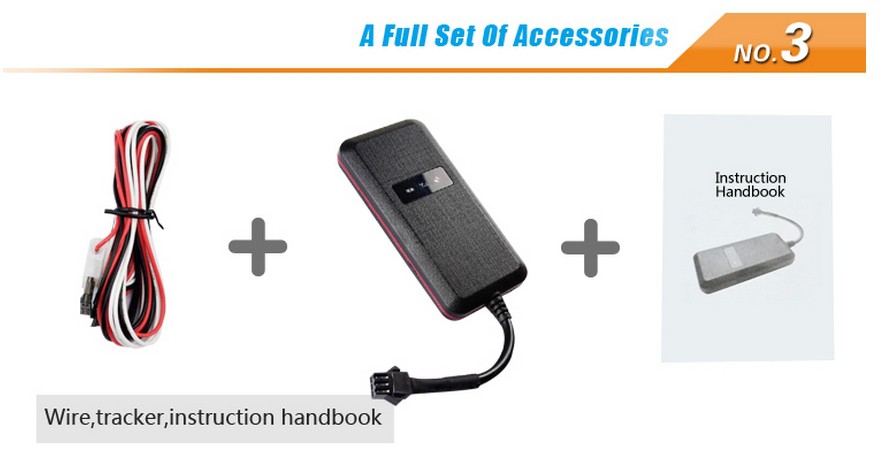

Accessories

1*charging cable

4*dust plug

4*screw

1*instruction handbook



Functions

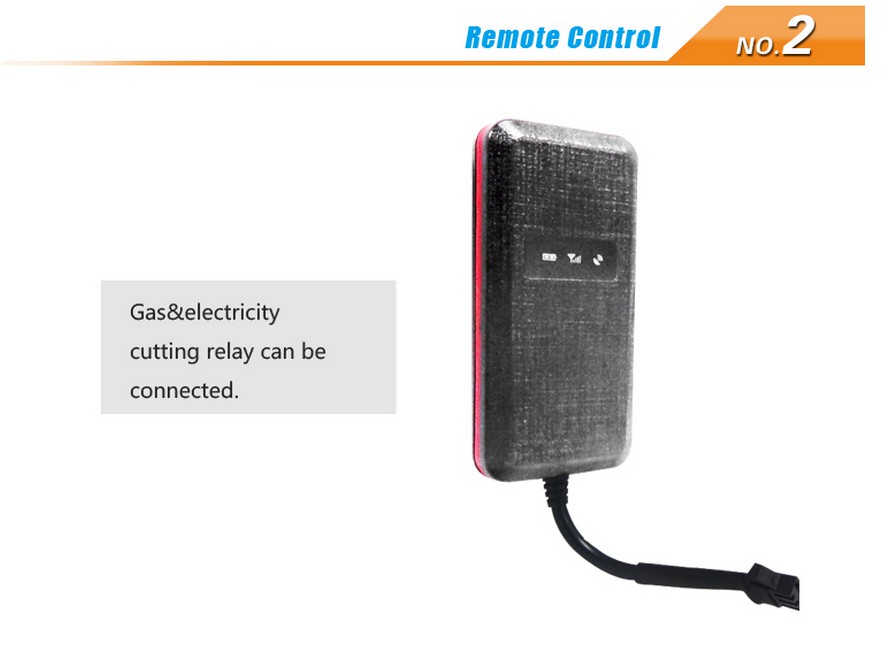

Gas & electricity remotely cutting/recovering By messaging or Web platform/IOS & Android APP operating.
Low voltage alarming A warning message will be sent to Web platform & phone APP if the voltage is too low.
Vibration alarm A warning message will be sent to Web platform & phone APP if the vehicle is shaking.
Geofence A Geofence can be set and the warning messages will be sent once the tracker was out of the geofence.
Historical route replaying The historical moving route of the latest 3 months of the watch can be replayed.
Base station auxiliary positioning Supported
Residual energy display The residual energy of the tracker can be displayed on the Web tracking platform and phone APP.
Low power consumption mode It’ll stay automatically if it moves less than 200 meters within 10 minutes
GSM blind port storage
Positioning data will be saved when there is no GPRS signal until the signal is found and the data uploded.
ACC feedbacking The situation of ACC can be checked on the Web platform & phone APP.
Out of electricity supplying alarm A warning message will be sent to the Web platform & phone APP once the tracker is out of electricity supplying.
The interval of time of uploading positioning data adjustment Supported



Highlights

-It’s cheaper than same type product for at least 20%.

-It’s easy to hide in car because it’s small & lightweight so It can be used for anti-theft.

-It can remotely cut(or recover) the gas & electricity and can be rested(or started) remotely by SMS/android APP/IOS APP/web page.

-It binds phone number, which means, text message will be sent to another phone number when its voltage is too low and it was out of the geofencing.

-It supports inspection of its position and residual energy by Android /IOS APP.

-It supports base station auxiliary positioning so the accuracy is high.

-It has internal shock sensor and movement recognition system so the warning message will be sent when the vehicle is shaking or some situations happened.

-It can feedback the realtime position information by sending messages.

-It has global commonly used quad band.

-It has a function of GSM blind port storage which can save the positioning data when there is no GPRS signal until the signal is found and the data uploded.

-It’ll feedback if the ACC is on or off and the user can check it on the Web tracking platform and phone APP.

-It’ll send a warning message once it out of charging.

-It’ll stay automatically if it moves less than 200 meters within 10 minutes so it’s very power-saving.

-Its integration level is very high so it’s easy to install.

-Its time interval of automatically uploading positioning data can be set.

-It’s dual-mode so the accuracy is high.



Usage Range

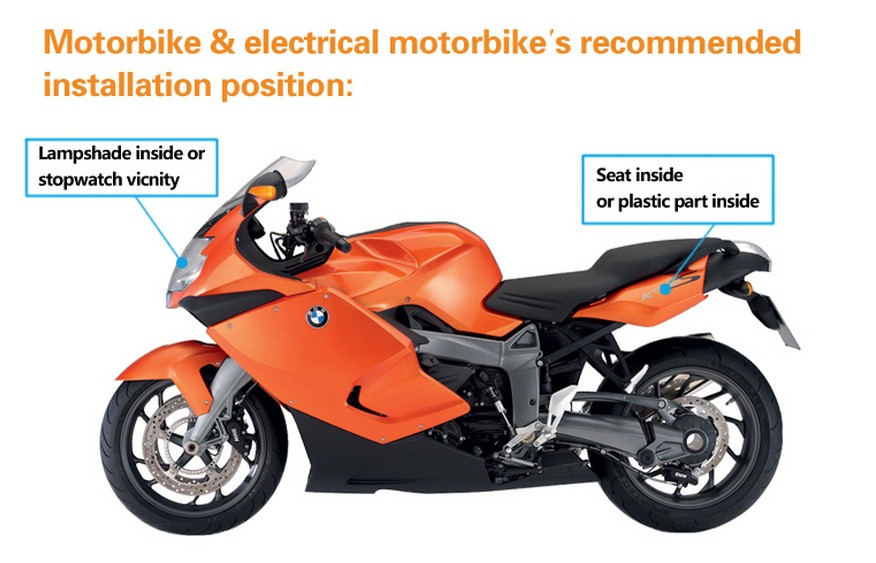

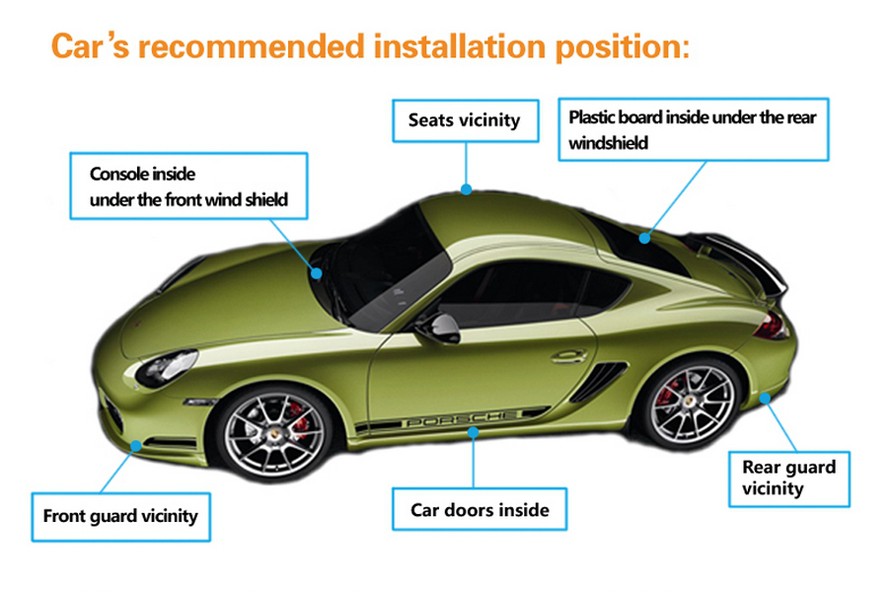

Vehicles:

-Car

-Electrocar

-Truck

-Motorbike

-Electric motorcycle

-Reffited vehicle

-Etc.


Circumstances:

-Checking the moving route of family car

-Tracking the car which was lent or stolen

-Monitoring the government cars which was privately used

-Etc.

location tracking device
YB02 GPS vehicle tracker web tracking Check location information via SMS and GPRS


The main functions of YB02:

1 Real time tracking by Android&IOS APP,and PC also.

2 Do the Master setting

3 Cut off oil& electric function

4 Waterproof IP65

5 Over-speed alarm

6 Vibration alarm

7 Low battery alarm

8 Cut Off Alarm

9 Geo-Fence Alarm


The specification of YB02:

GSM:850/900/1800/1900 Quad band

Working Voltage:9-24V

Waterproof of Grade:IP65

Setting static and movement upload timing interval

Only three wires; Power supply grounding cut off petrol/electric

GPS static closed enter power save mode

Setting management number

Cutoff (petrol/electric)only speed less than 20Km/H

Backup Battery:150mAh Standby time: 2 hours


Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

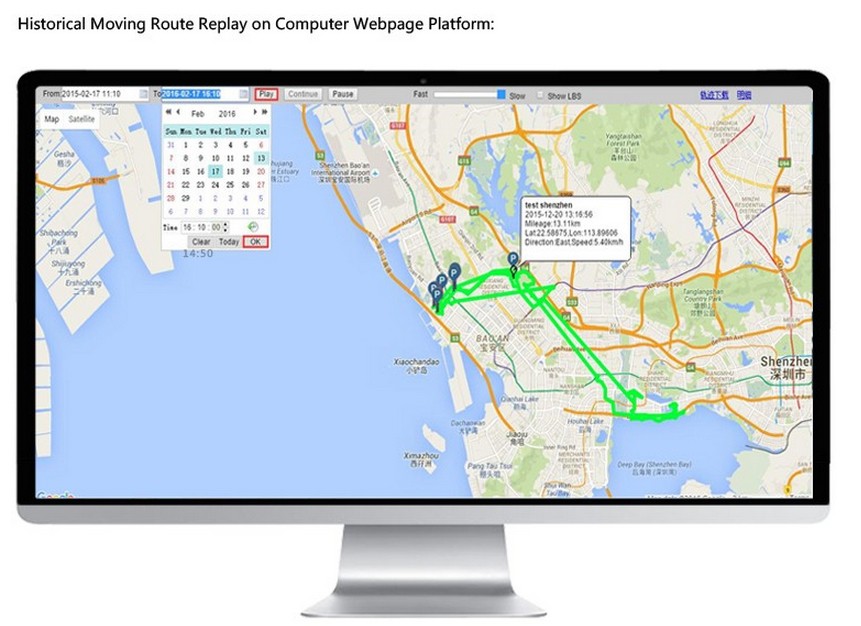

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

        Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.


        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
