mini OBD Tracker Devices system With Sim Card Gsm Gps Tracker- GT01

Product name : mini OBD Tracker Devices system With Sim Card Gsm Gps Tracker
Category :  Vehicle GPS Tracker
Product No. : GT01
Online Inquiry         Email Us



Quick Details

  • Type: obd gps tracker
  • Model: GT01
  • Weight: 51 grams
  • GSM frequency: Global commonly used 4 frequencies
  • GPS accuracy: 10 meters, 2D RMS
  • Network bands: GSM 850/900/1800/1900 Mhz
  • Radiation: <Smart phone
  • Network: GSM/GPRS(class 12,TCP/IP)
  • Packing size: 6* 8.7*13 cm/piece
  • Phone APP operating system: Android 2.3/iOS 5.0 and newer
  • Brand: YUEBIZ Technology







    Packaging Details 18 pieces/carton(0.315*0.295*0.2 meter)
    Delivery Time Shipped in 1 days after payment

OBD tracker

obd gps tracker
OBD tracker
obd gps tracker
logistic tracking system
Obd Tracking Devices
OBD GPS locator
OBD locator
Mini OBD Tracker
Mini OBD GPS Tracker
Product Description

          Vehicle OBD GPS tracker GT01 is one of the independently researched and developed GPS products from YUEBIZ Technology Co., Ltd. which adopted imported high gain GPS module and unique dual mode design, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily hidden and installed GPS tracker in car because of small type and light weight.

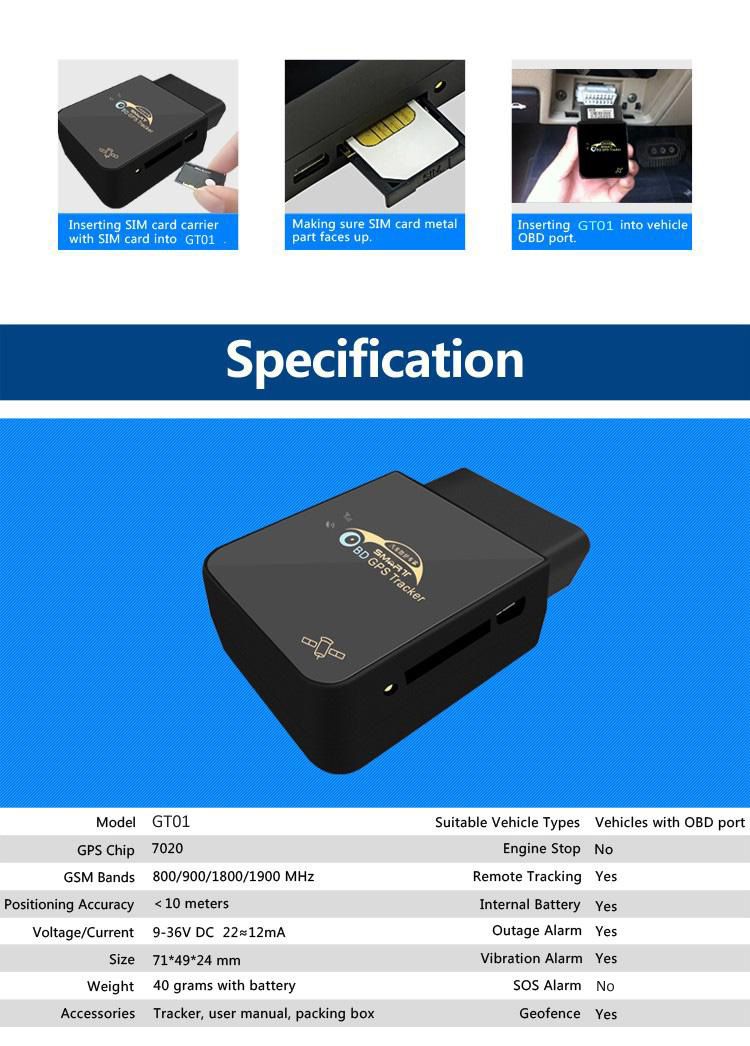

Specifications
Model GT01
Brand YUEBIZ Technology
GSM frequency Global commonly used 4 frequencies
GSM module



Quad band(GSM 850/900/1800/1900 Mhz)

GSM positioning accuracy

50-300 meters

GPS accuracy 10 meters, 2D RMS
GPS sensitivity -159 dBm
Speed accuracy 0.1 meter/second
GPRS Class 12, TCP/IP

Hot start

2 second(all data is valid, start within 2 hours since the last positioning)

Warm start

32 seconds(initialization data loaded, start after 2 hours since the last positioning)

Cold start

38 seconds

(first start, ephemeris cleared and then start, move out about 1,000 km and then start)

Max altitude

18,000 meters

Max speed

515 meters/second

Gravitational acceleration

<4 grams

Network GSM/GPRS(class 12, TCP/IP)
Weight

51 grams

Working voltage range 6-50 V DC
Working temperature -20 to +70 ℃
Working humidity 20-80% RH
Stand-by working current 25 mA for 12 V
Operating system for phone APP Android 2.3 and higher, iOS 5.0 and higher

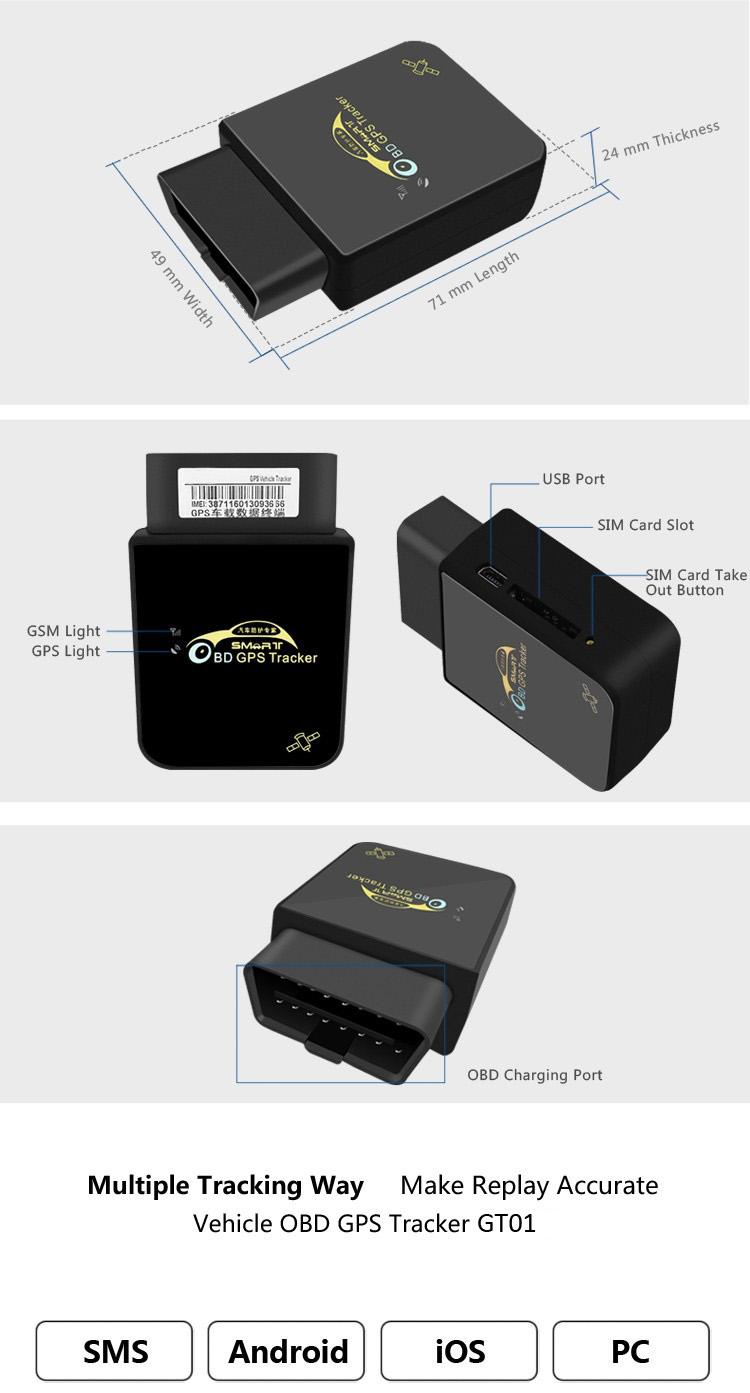

Size



Length: 7.1 cm



Width: 4.9 cm



Height: 2.4 cm

Packing size: 6*8.7*13 cm

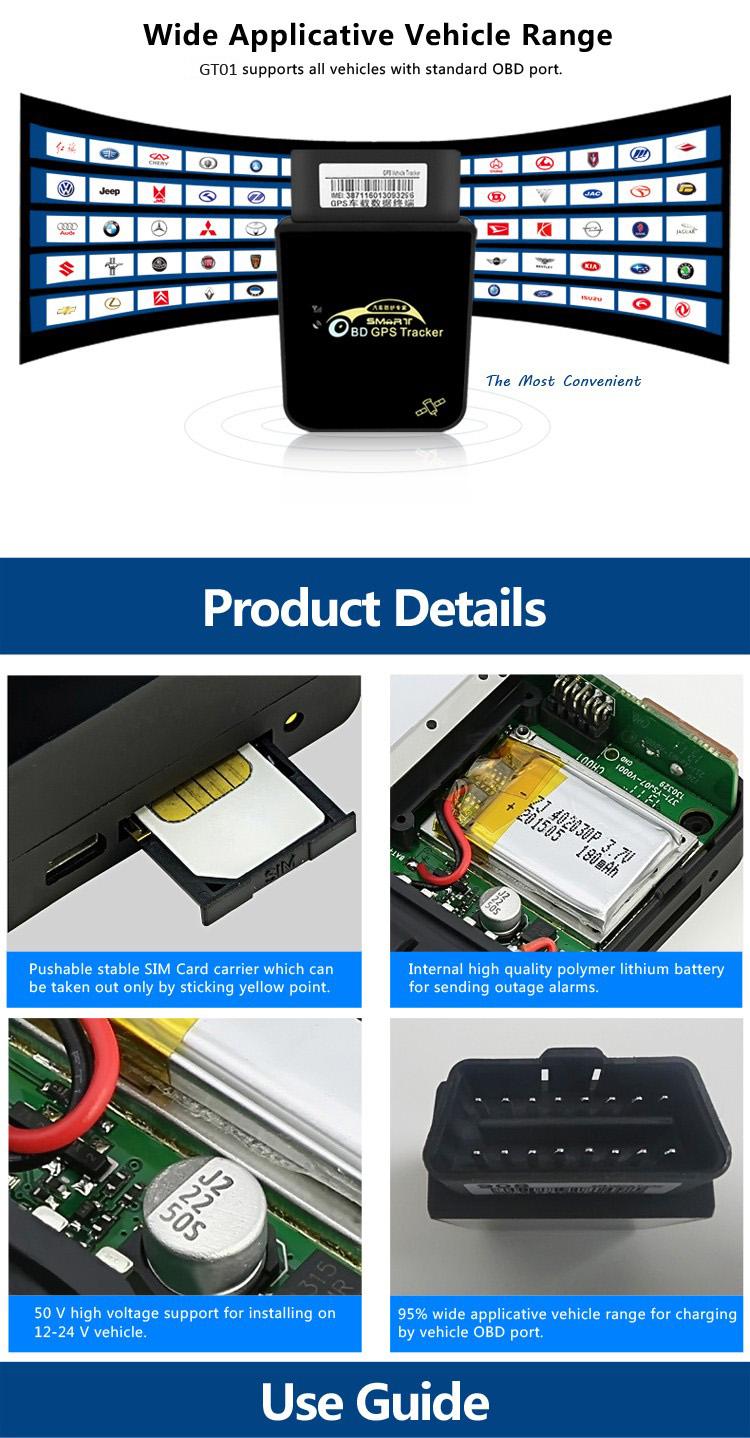

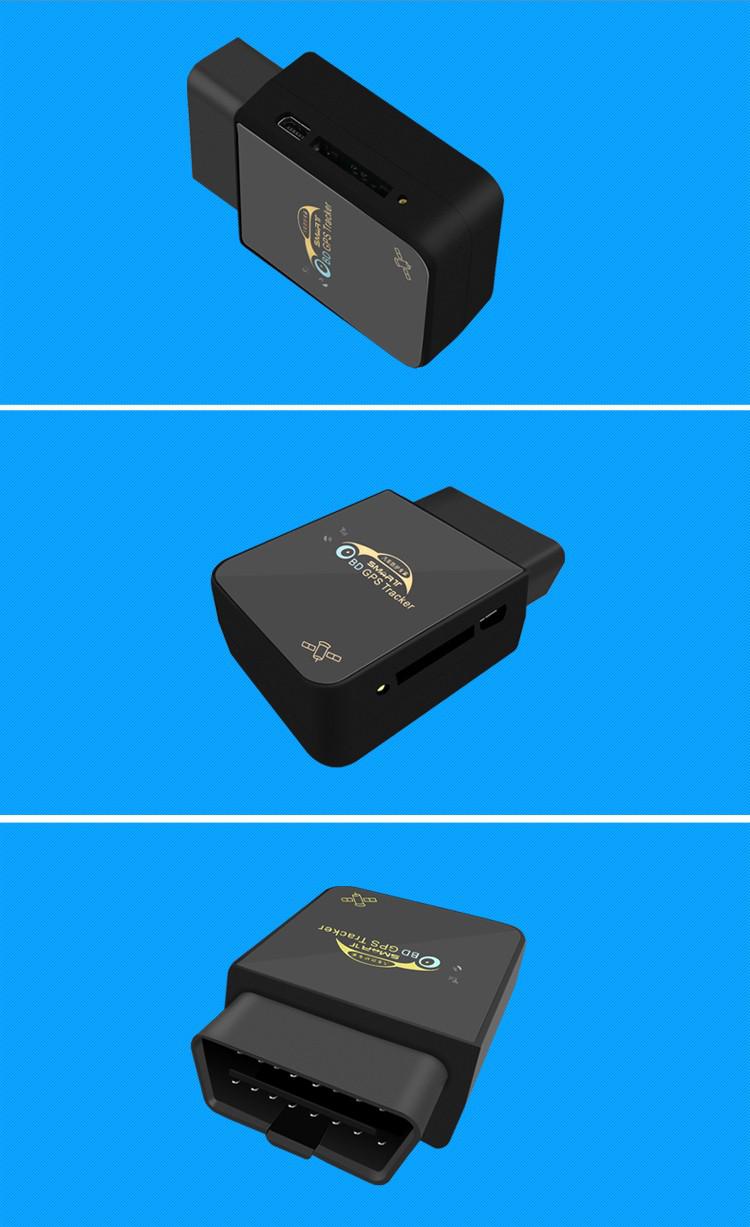

Product Composition

GPS indicator light (Green)

When GPS isn't working, this light will be twinkling.

When GPS works normally, the light will be always lighting.

GSM  indicator light (Blue)

When GSM isn't working, this light will be twinkling.

When GSM works normally, the light will be always lighting.

OBD power connector To connect the car OBD port to charge.
GPS antenna GPS accuracy: 10 meters, 2D RMS
SIM card slot 1 unit
Accessories

1*user manual



Functions
Low power alarming A warning message will be sent to computer webpage platform and phone APP if the battery power is too low.

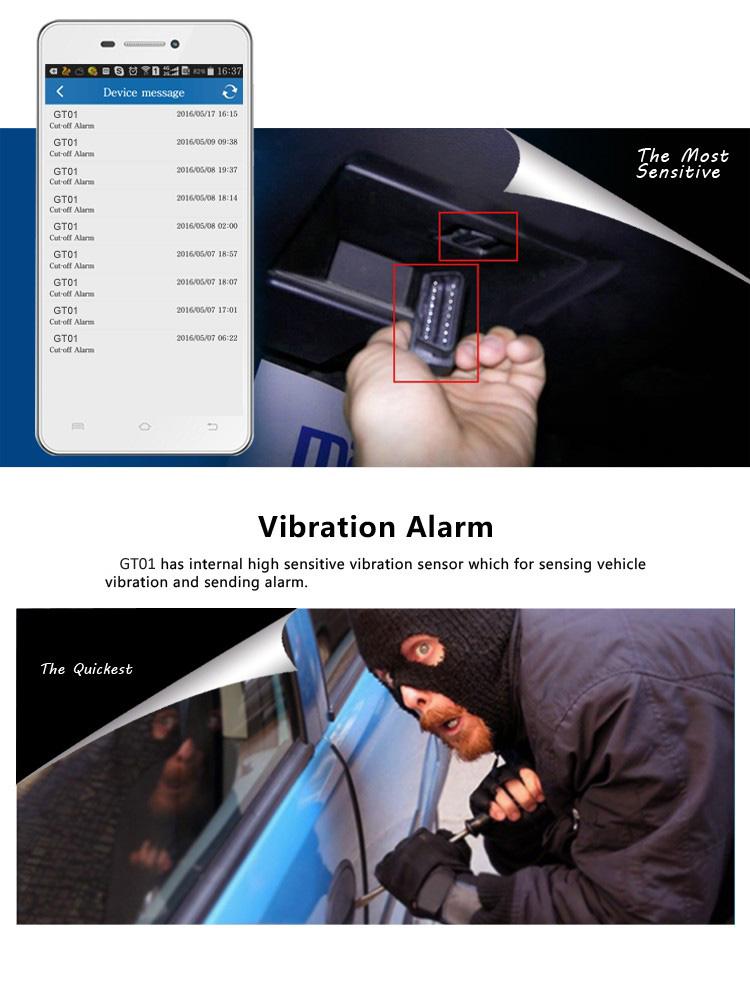

Vibration alarm A warning message will be sent to computer webpage platform and phone APP if the vehicle is shaking.

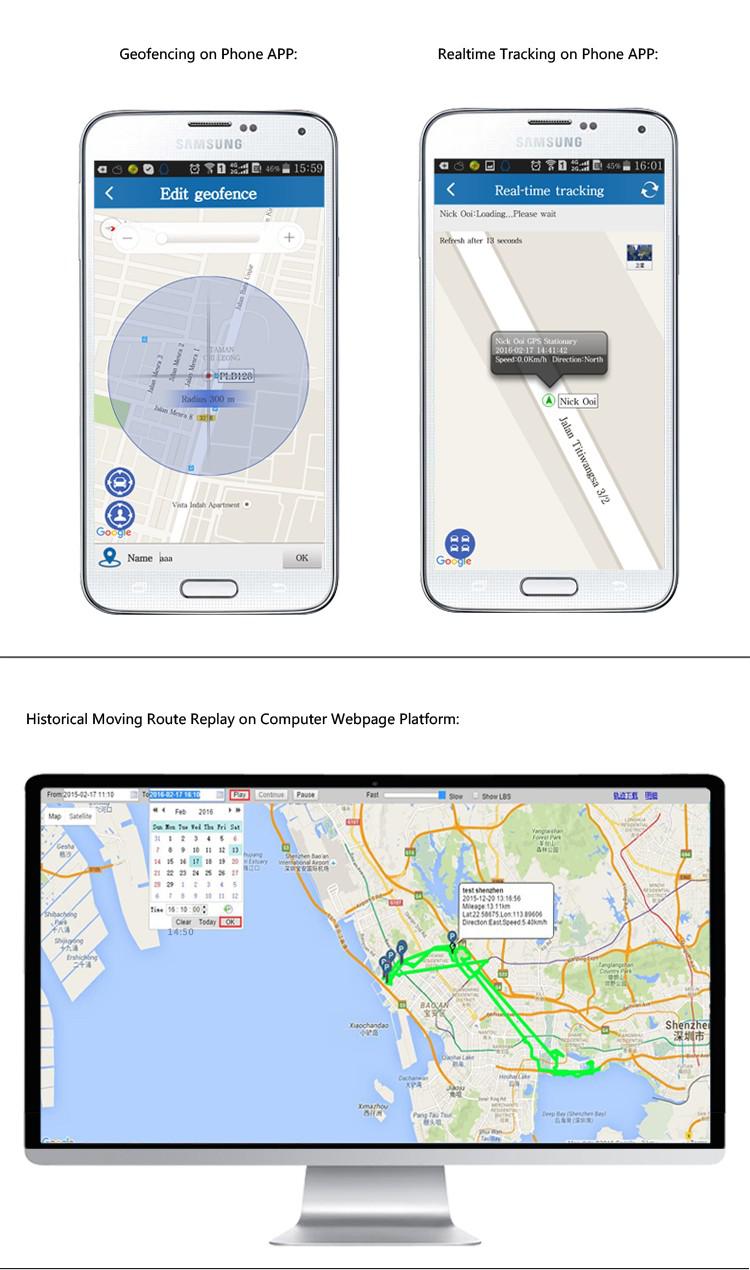

Geofence A geofence can be set and the warning messages will be sent once the tracker got in/out the geofence.
Historical route replaying The historical moving route of the latest 3 months(at least) of the watch can be replayed.
Base station auxiliary positioning Support.
Residual battery power display The residual battery power of the tracker can be displayed on the computer webpage platform and phone APP.
GSM blind zone storage
Positioning data will be saved when there is no GPRS signal until the signal is found and the data uploded.
Electricity outage alarm A warning message will be sent to the computer webpage platform and phone APP once the tracker is out of electricity supplying(has been pulled out of vehicle OBD port).
Positioning Frequency Support.



Highlights

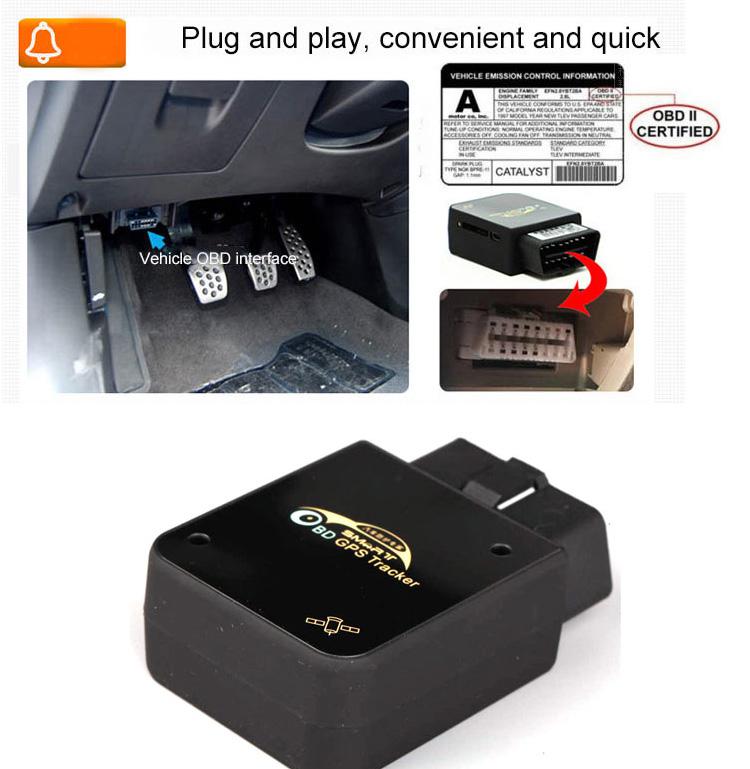

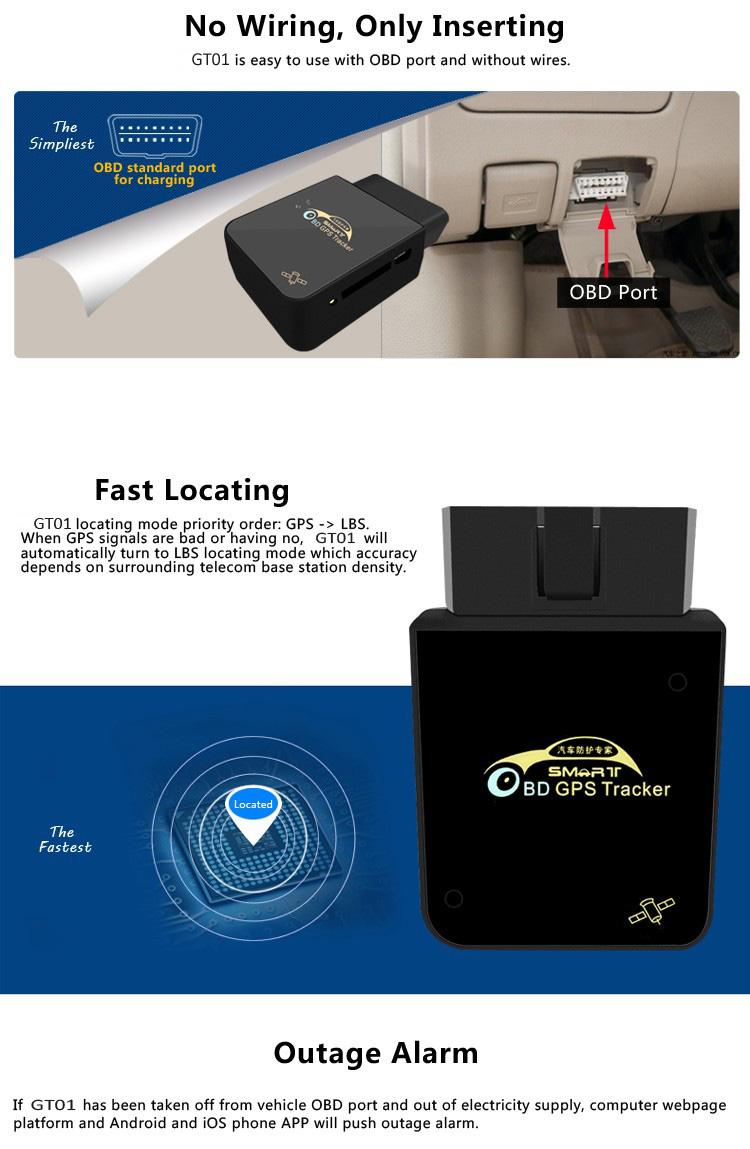

-It's charging by vehicle OBD port.

-It's 24 hours online on computer webpage platform and phone APP.

-It’s cheaper than same type product for at least 20%.

-It’s easy to hide in car because it’s small & lightweight so It can be used for anti-theft.

-It binds phone number, which means, text message will be sent to another phone number when its voltage is too low and it got out or in the geofence.

-It supports inspection of its position and residual battery power by Android and iOS APP.

-It supports base station auxiliary positioning so the accuracy is high.

-It has internal shock sensor and movement recognition system so the warning message will be sent when the vehicle is shaking.

-It can feedback the realtime position information by sending messages.

-It supports global commonly used GSM quad band.

-It has a function of GSM blind zone storage which can save the positioning data when there is no GPRS signal until the signal is found and the data uploded.

-It’ll send a warning message once it out of charging(be pulled out from vehicle OBD port).

-Its integration level is very high so it’s easy to install.

-Its positioning frequency can be set.

-It’s dual mode positioning so the accuracy is high.



Usage Range

Vehicles:

-Car

-Truck

-Etc.



Circumstances:

-Checking moving route of family car

-Tracking the car which was lent or stolen

-Monitoring the government cars which might be privately used

-Etc.

OBD Vehicle GPS Tracker
vehicle Obd tracker
fleet management tracking

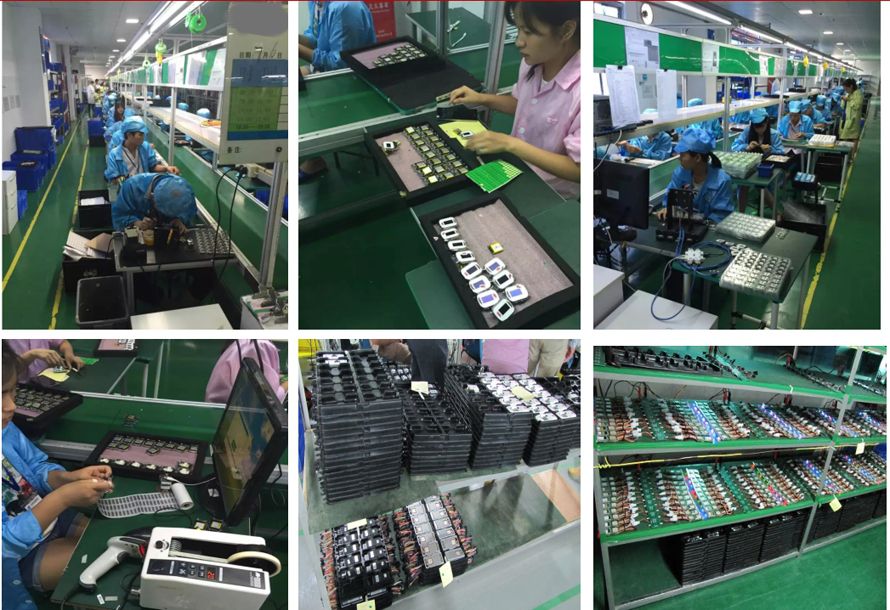

China Obd gps tracker factory
GT01 Main Functions:
1, Do the Master setiing
2, Over-speed alarm
3, Vibrataion alarm
4, Check the fee of Sim card

GT01 Technical parameter:
1).GSM:850/900/1800/1900MHz
2).GPRS:Class12,TCP/IP
3). Working Voltage:9-36V DC
4). Working current:≈22mA (12vDC)
5). Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)Warm start≈32s
    Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8). Working temperature:-20℃~+70℃
9). Working humidity:20%~80%RH
10). Measurement:71(L)×49(W)×24(H)mm

Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

         Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.


        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
