GPS / GSM / GPRS Multi-function stable Vehicle Tracker with Remotely Cut Off Fuel- YB06S

Product name : GPS / GSM / GPRS Multi-function stable Vehicle Tracker with Remotely Cut Off Fuel
Category :  Vehicle GPS Tracker
Product No. : YB06S
Online Inquiry         Email Us
YB06S vehicle multifunctional gps tracker support cut off engine/power SOS, Micro china gps

stable Vehicle Tracker Product Description:

1. Newest generation GPS chipset
2. Built-in GPS/GSM antenna,Quad band
3. Buit in battery (270mAh)
4. GPS chipset with high sensitivity, High integration density
5. Wide range power input 8-90V
6. 3000 points history trace can be saved without GSM coverage
7. Quick GPS fixed with Assist-GPS technology
8. Real time tracking via Web, APP and SMS
9. Built-in vibration sensor,perform vehicle intelligent robbery protection
10. ACC detection, to upload status of vehicle operation
11. Oil cut off
12. Voice monitor
13. Over speed alert, Vibration alert, Power cut off alert, Low battery alert, Geo-fence alert
14. 3 special numbers for SOS alarm and burglar alarm
15. SOS alarm button for emergency call
Remotely Cut Off Fuel
Over speed alert
Vibration alert
YB06S stable Vehicle Tracker Specifications:

GPS: SIRF Star III

GPS Channels: 20

Tracking sensitivity: -159dBm

Acquisition sensitivity: -144dBm

Locating time cost: Hot start: <2 sec(open sky)

                               Warm start: <15 sec

                               Cold start: <38 sec(open sky)

Antenna: Built-in GSM quad band antenna, GPS high gain antenna.

Battery: 270mAh

Monitoring range: 5M

Voltage input range: 9-50 VDC

LED indicator: Three LED indicator: GPS-blue, GSM-green, Power-red

Dimensions: 84.0(L)*42.0(W)* 9.8(H)mm

Weight: 60g

Application environment: Operating temperature: -25 to+70

                     Operating humidity: 5% to 95% non-condensing
stable Vehicle Tracker
Vehicle Tracker
stable Vehicle Tracker
gps tracker
YB06S Installing the SIM card Important:
1 A SIM card is required in order to use cellular services whenconnecting to GSM networks.
2 Keep the SIM card GPRS availability
3 Note down the SIM card phone numbers which is device contacting numbers. Open the side plug, install the SIM card in the right direction, turn on the device. Setting up and activating the device To set up and activating the device, you should send SMS to device numbers by mobile phone.

YB06S Installing the device:

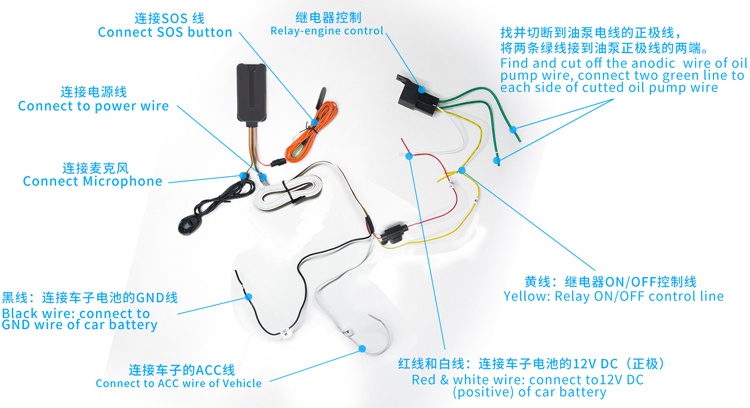

1. Connect according wires to your car by referring to Wiring Diagram.
2.Install the device in following three suggested place:Important: A. Make it covert for security factors. B.Keep away from high power electrical devices, such as reversing radar,anti-theft device or other vehicle communication equipment which may affect the device signal. C .Keep the device front face up & No metallic cases above the devicewhich may affect signal as well. Such as the windshield which is pasted with metalthermal-protective coating or heating coating.

YB06S vehicle gps tracker

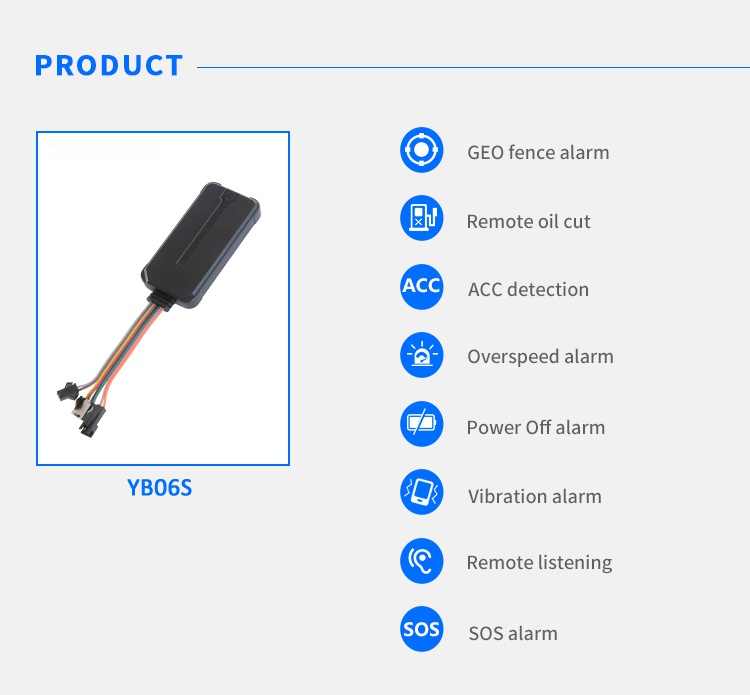

YB06S GPS Tracker Main Features:

Built-in GPS/GSM antenna
GSM 850/900/1800/1900 Quad band
GPS chipset with high sensitivity, High integration density
Built-in high sensitivity GPS antenna, extra strong receptivity
The only one global vehicle device built in double antenna (GSM+GPS)
Built-in ON/OFF power, wide voltage input range
Built-in vibration sensor, perform vehicle intelligent robbery protection
ACC detection, to upload status of vehicle operation
Be able to external connect cutoff relay to perform gas and electricity telecontrol
3 special numbers for SOS alarm and burglar alarm
Be able to external connect SOS alarm button for emergency call
Be able to external connect microphone to perform voice monitor
Built-in backup battery to perform.
Compatible with external connection of device serial port communication

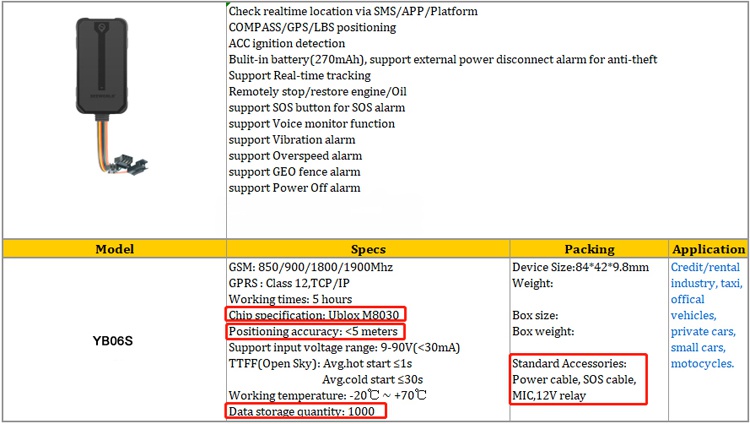

YB06S stable Vehicle Tracker Features:

Check realtime location via SMS/APP/Platform
COMPASS/GPS/LBS positioning
ACC ignition detection
Bulit-in battery(270mAh), support external power disconnect alarm for anti-theft
Support Real-time tracking
Remotely stop/restore engine/Oil
support SOS button for SOS alarm
support Voice monitor function
support Vibration alarm
support Overspeed alarm
support GEO fence alarm
support Power Off alarm


YB06S stable Vehicle Tracker Function:

High sensitivity GPS receiver chip
* Built-in high sensitivity GPS antenna, super reception
* Highly integrated design, with dual built-in antenna (GSM, GPS) design
* Built-in switching power supply, wide voltage input range
* Built-in vibration sensor, to achieve intelligent vehicle anti-theft
* Support ACC detection, vehicle start alarm
* An external relay, remote control vehicle fuel and electricity
* Specific numbers can be set three alarm and burglar alarm for SOS
* SOS alarm button can be connected for emergency calls for help
* An external microphone, remote voice monitoring function
* Built-in backup battery, illegal cutting line to achieve the alarm
* Compatible with external serial communication device
· GSM quad-band system of global common

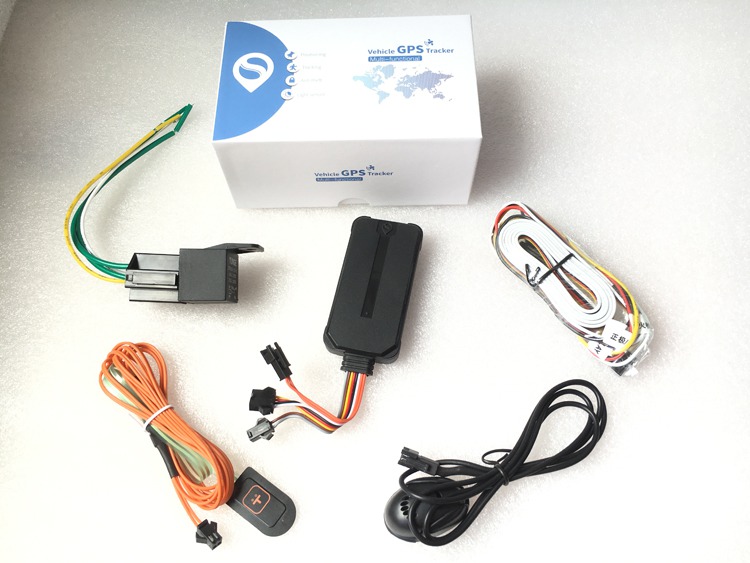

YB06S stable Vehicle Tracker Accessories:
GPS Main Unit
SOS Button
Microphone
Relay
User manual

YB06S stable gps tracker
YB06S stable gps tracker

YB06S stable gps tracker
YB06S stable gps tracker
YB06S stable gps tracker
YB06S stable gps tracker
YB06S stable gps tracker
