Super Mini OBD vehicle GPS Tracker with Voice Monitoring- YB10

Product name : Super Mini OBD vehicle GPS Tracker with Voice Monitoring
Category :  Vehicle GPS Tracker
Product No. : YB10
Online Inquiry         Email Us
Quick Details

Type:
mini obd gps
Model:
YB10
Weight:
27.5 g
GSM frequency:
Global commonly used 4 frequencies
GPS+BEIDOU accuracy:
10 meters, 2D RMS
Network bands:
GSM 850/900/1800/1900 Mhz
Radiation:
<Smart phone
Network:
GSM/GPRS(class 12,TCP/IP)
Packing size:
5*2.9*3.8 cm/piece
Phone APP operating system:
Android 2.3/iOS 5.0 and newer
Brand:YUEBIZ


Car OBD GPS
GPS YB10
Car OBD GPS Tracker
OBD GPS Car Tracker
OBD GPS
OBD Track
OBD Car GPS Tracker
Mini OBD GPS
OBD Tracker
Mini OBD Tracker
Mini OBD GPS Tracker
OBD Mini GPS Tracker
Mini OBD vehicle GPS Tracker
smart GPS Tracker
YB10 OBD GPS
YB10 OBD Track
YB10 Mini OBD GPS
YB10 OBD Tracker
YB10 Mini OBD Tracker
YB10 Mini OBD GPS Tracker
Product Description

          Vehicle OBD GPS tracker YB10 is one of the independently researched and developed GPS products from YUEBIZ Technology Co., Ltd. which adopted imported high gain GPS and BEIDOU module, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily hidden and installed GPS tracker in car because of small type and light weight.



Specifications
Model YB10
Brand YUEBIZ Technology
GSM frequency Global commonly used 4 frequencies
GSM module

Quad band(GSM 850/900/1800/1900 Mhz)

GPS accuracy 10 meters, 2D RMS
GPS sensitivity -159 dBm
Speed accuracy 0.1 meter/second
GPRS Class 12, TCP/IP

Hot start

≈2 second

Warm start

28 seconds

Cold start

38 seconds

Max altitude

18,000 meters

Max speed

515 meters/second

Gravitational acceleration

<4 grams

Network GSM/GPRS
Weight

27.5 grams

Working voltage range 4.5-50V DC
Working temperature -20~+70 ℃
Working humidity 20-80% RH
Stand-by working current 25 mA for 12 V
Operating system for phone APP Android 2.3 and higher, iOS 5.0 and higher
Size

Length: 5 cm

Width: 2.9 cm

Height: 3.8 cm

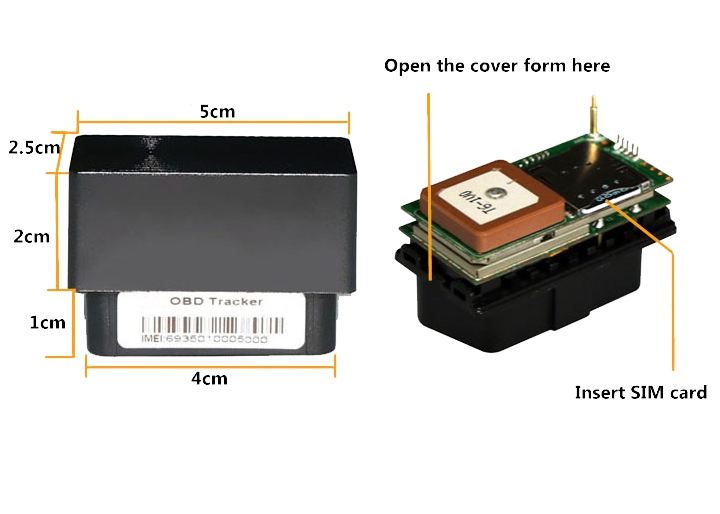

Product Composition

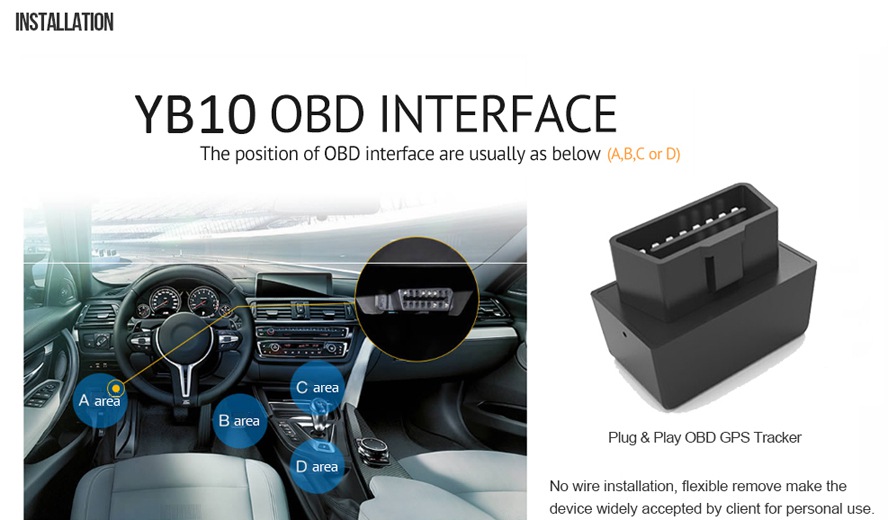

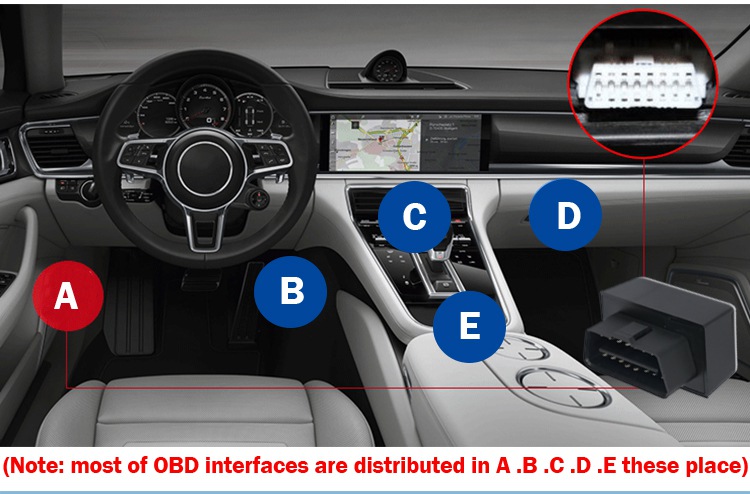

OBD power connector To connect the car OBD port to charge.
GPS antenna GPS accuracy: 10 meters, 2D RMS
SIM card slot 1 unit
Accessories

1*user manual



Functions
Listen-in The tracker supports remote voice monitoring.
Low power alarm Alarm message will be created if battery power is too low.
Vibration alarm Alarm message will be created if vehicle is shaking.
Geofence A range can be set on map and alarm messages will be sent once the tracker got in/out the range.
Historical route replaying Historical moving route of the latest 3 months(at least) of the tracker can be replayed.
Base station positioning Support.
Residual battery power display Residual battery power of the tracker can be displayed on the computer webpage platform and phone APP.
Signal blind area storage
Positioning data will be saved when there is no GPRS signal until the signal found and the data uploded.
Electricity outage alarm Alarm message will be created once the tracker is out of electricity supplying(has been pulled out of vehicle OBD port).
Positioning Frequency Support.



Highlights

-It supports remote voice monitoring.

-It's charging by vehicle OBD port.

-It's 24 hours online on computer webpage platform and phone APP.

-It’s cheaper than same type product for at least 20%.

-It’s easy to hide in car because it’s small and lightweight so it can be used for anti-theft.

-It supports displaying position and percent of residual battery power on software.

-It supports base station positioning so the accuracy is high.

-It has internal shock sensor and movement recognition system so alarm message will be sent when the vehicle is shaking.

-It can feedback the realtime position information by sending messages.

-It supports global commonly used GSM quad band.

-It has a function of GSM blind zone storage which can save the positioning data when there is no GPRS signal until the signal is found and the data is uploded.

-It’ll send alarm message once it out of charging(be pulled out from vehicle OBD port).

-Its integration level is very high so it’s easy to install.

-Its positioning frequency can be set.

-It’s dual mode positioning so the accuracy is high.



Usage Range

Vehicles:

-Car

-Truck

-Etc.



Circumstances:

-Checking moving route of family car

-Tracking the car which was lent or stolen

-Monitoring the government cars which might be privately used

-Etc.


YB10 Main Functions:
1,Real Time Tracking by APP&PC
2,Over-speed alarm
3,Vibration alarm
4,Voice Monitoring
5,Cut off Alarm
6,Geo-Fence Alarm

YB10 Technical parameter:
1,GSM:850/900/1800/1900MHz
2,GPRS:Class12,TCP/IP
3,Working Voltage:9-36V DC
4,Working current:≈22mA (12vDC)
5,Working current:≈12mA (24vDC)
6,GPS locating time:Cold start≈38s(Open sky)Warm start≈32s
    Hot start≈2s(Open sky)
7,GPS Precision:10m(2D RM)
8,Working temperature:-20℃~+70℃
9,Working humidity:20%~80%RH

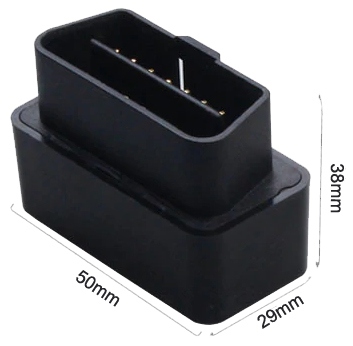

10,Measurement:50(L)×29(W)×38(H)mm Weight: 27.5g

Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

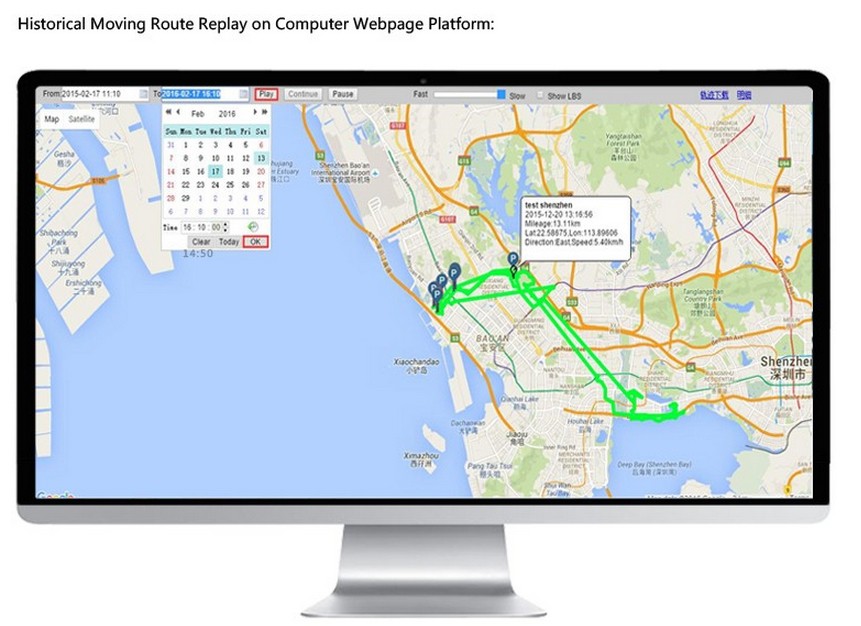

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

         Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.


        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
